DualShock 4 Wireless Controller

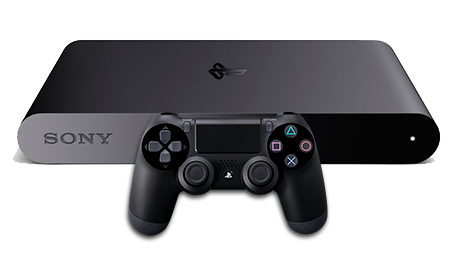

Connecting to a PlayStation TV

Connecting to a PlayStation TV
Set Output Protocol
Follow the instructions here to correctly connect your CronusMAX PLUS to a PC via the PC PROG port using the supplied Mini-USB Cable.

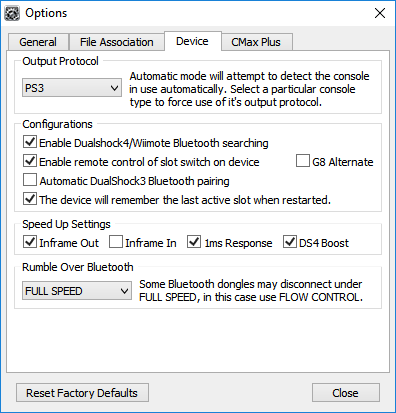

Load Cronus PRO and go to Tools > Options > Device
Set the Output Protocol to PS3.
These are also the recommended default Speed Up Settings for DualShock 4 Wireless Controllers.
Enable DualShock 4 Bluetooth Searching
Check the box to the Left of 'Enable DualShock 4/Wiimote Bluetooth searching'.
The recommended Speed Up Settings when using a DualShock 4 Controller with a Bluetooth 4.0 USB Adapter are as above - you can choose to tweak with them if you have any issues. If you have a slower Bluetooth adapter or experience any issues with rumble then you should try different 'Rumble Over Bluetooth' speed settings. You have the alternative options of Flow Control+, Flow Control and Disabled.
You can now close the Options window and disconnect your CronusMAX PLUS from your PC.
Connect the CronusMAX PLUS to your PlayStation TV
Connect the CronusMAX PLUS into one of your PlayStation TV USB ports via it's Output Port.
The CronusMAX PLUS LED Display will now show the spinning Standby animation.
Connect your Bluetooth USB adapter to the CronusMAX PLUS
Connect your Bluetooth USB adapter into the Input Port of the CronusMAX PLUS.
If you need to purchase a good quality Bluetooth 4.0 USB Adapter, our store supplies them at discounted rates - click here.
Hold down the SHARE and PS buttons on your DualShock 4
Press and hold the SHARE and PS buttons on your DualShock 4 until the light bar starts to flash white.  Once it starts flashing white, the controller is searching and connecting to the CronusMAX PLUS.
After a few seconds, the light bar should change to a solid color (usually blue if Player 1) and is now paired with the CronusMAX PLUS.
Note: If you have trouble pairing your DualShock 4 controller back to your PS4 without using a CronusMAX, follow this troubleshooting guide on our forums.
Ready to Use
After a couple of seconds the display on the CronusMAX LED will go from the spinning Standby Animation to 0 (or a number if slot recall is enabled and a script was previously loaded) - indicating that the controllers are authorized and you're ready to play. At this point you can use your controller through the CronusMAX PLUS and also load any scripts or GamePacks. It's that simple!
Click Here for a comprehensive guide on how to solve lag problems.

OPTIONAL: Disable DualShock 4 Bluetooth searching
If you do not intend to use your DualShock 4 controller without the CronusMAX PLUS in the future, you can now disable DualShock 4 Bluetooth searching to speed up subsequent DualShock 4 wireless syncing.
This would also mean that next time, you can skip steps 1 and 2 and instead of holding the SHARE and PS buttons in step 5, you would simply press the PS button
