 Set Output Protocol

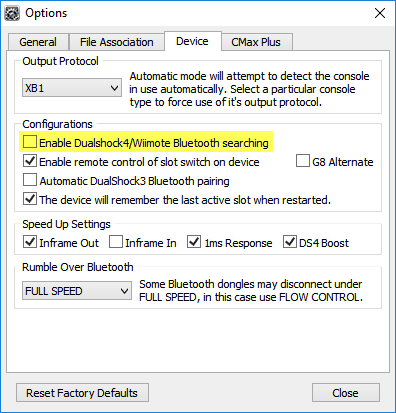

Load Cronus PRO and go to Tools > Options > Device
 Set the Output Protocol to XB1.
These are also the recommended default Speed Up Settings for DualShock 4 Wireless Controllers.
| ||
 Enable DualShock 4 Bluetooth Searching Check the box to the Left of 'Enable DualShock 4/Wiimote Bluetooth searching'.
 The recommended Speed Up Settings when using a DualShock 4 Controller with a Bluetooth 4.0 USB Adapter are as above - you can choose to tweak with them if you have any issues. If you have a slower Bluetooth adapter or experience any issues with rumble then you should try different 'Rumble Over Bluetooth' speed settings. You have the alternative options of Flow Control+, Flow Control and Disabled.
You can now close the Options window and disconnect your CronusMAX PLUS from your PC.
|
 Connect the CronusMAX PLUS to your Xbox One
| ||||
 Connect your Xbox One Controller to the CronusMAX PLUS
If the LED on the CronusMAX PLUS does not change from AU to a number then the authorization controller is not authenticating. 99% of the time we find that this means the Micro-USB cable to the controller is faulty or not full data or simply not compatible, you should try another one. Another issue that sometimes comes up is that the controller USB port has a loose data pin. It will charge fine, but won't transmit data. Also make sure the controller is powered on of course - that's a rookie mistake. If it's stuck in AU after a console reset, then you need to unplug the Cronus as it is still reading the consoles security ID from the previous reboot. This is a problem with Xbox One as power is constantly provided to the USB ports, even after a soft-reset. We recommend you use our custom Power/Data Switch Cable. | ||||
 Disconnect your Xbox One controller from the CronusMAX PLUS Once the display on the CronusMAX PLUS shows a number, disconnect your Xbox One controller from the CronusMAX PLUS.
| ||
 Connect your Bluetooth USB adapter to the CronusMAX PLUS
| ||
 Hold down the SHARE and PS buttons on your DualShock 4 Press and hold the SHARE and PS buttons on your DualShock 4 until the light bar starts to flash white. Once it starts flashing white, the controller is searching and connecting to the CronusMAX PLUS.
After a few seconds, the light bar should change to a solid color (usually blue if Player 1) and is now paired with the CronusMAX PLUS.
Note: If you have trouble pairing your DualShock 4 controller back to your PS4 without using a CronusMAX, follow this troubleshooting guide on our forums.
| ||||
 Ready to Use
If you find that your DS4 controller disconnects at random times there are several things to check that should solve the problem. 1. The USB cable could be losing its connection between the Authorization (XB1) controller and the CronusMAX PLUS. This can be caused by a poor quality USB cable or the USB socket on the controller itself is loose. Check all connections and replace any parts if necessary. 2. The Bluetooth settings may need tweaking. Go to Step 1 in this guide and try disabling Rumble Over Bluetooth and also try enabling DS4 BT Boost to see if that makes a difference. 3. You powered on the console with the controller. Don't do that as the console will sync with the controller and the security ID will pass to the console and not the CronusMAX PLUS. Always power on the console with the consoles power button. 4. Go to Step 1 in this guide and make sure 'Inframe In' is disabled and also try disabling the '1ms Response' and 'Inframe Out' options too. This sometimes solves any disconnecting problems. | ||
