 Set Output Protocol

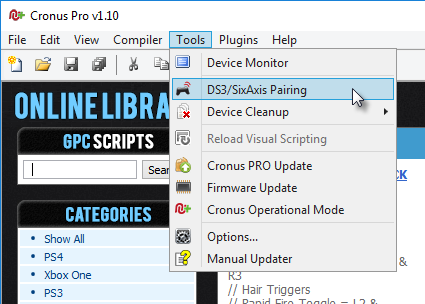

Load Cronus PRO and go to Tools > Options > Device

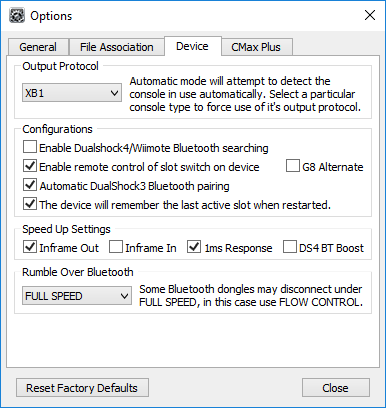

 Set the Output Protocol to XB1.
You can also enable Automatic DualShock 3 Bluetooth pairing if you wish.
The recommended Speed Up Settings when using a PS3 Move Navigation Controller with a Bluetooth 4.0 USB Adapter are as above - you can choose to tweak with them if you have any issues. If you have a slower Bluetooth adapter or experience any issues with rumble then you should try different 'Rumble Over Bluetooth' speed settings. You have the alternative options of Flow Control+, Flow Control and Disabled.
You can now close the Options window.
| ||
 Connect your Bluetooth USB adapter to the CronusMAX PLUS

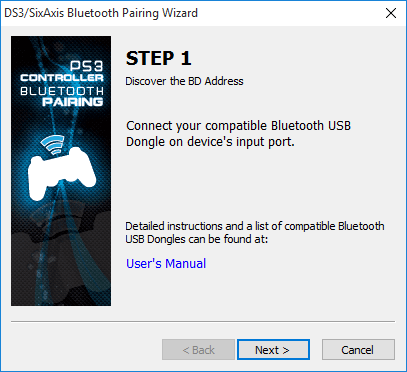

Step 1 of the DS3/SiXAxis Bluetooth Pairing Wizard will appear. Click Next to continue once the Bluetooth USB Adapter is connected to the CronusMAX PLUS.
 | ||

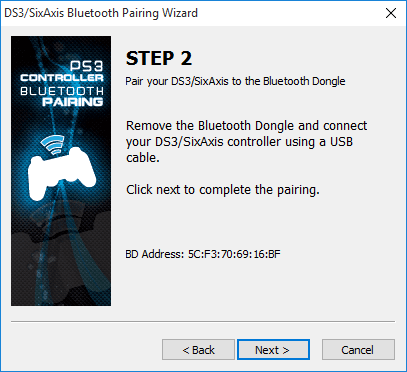

 Connect your Navigation Controller to the CronusMAX PLUS Step 2 of the DS3/SiXAxis Bluetooth Pairing Wizard will appear. This stores the details of your Bluetooth USB Adapter.
Disconnect the Bluetooth USB Adapter from the CronusMAX PLUS and using a Mini USB Cable, connect your PS3 Move Navigation Controller to the CronusMAX PLUS then click Next.
 |

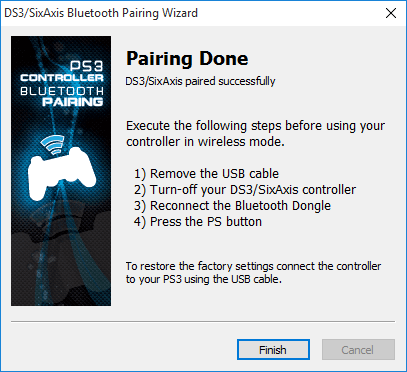

 Pairing Complete The CronusMAX PLUS has now paired your PS3 Move Navigation Controller with your Bluetooth USB Adapter.
 Disconnect yourPS3 Move Navigation Controller from the CronusMAX PLUS and unplug the Mini-USB Cable from it. You can also disconnect the CronusMAX PLUS from your PC.
If your DualShock 3 remains powered (The player LED's are lit or flashing), press and hold the PS button on the controller for 30 seconds or until the LED's turn off. |

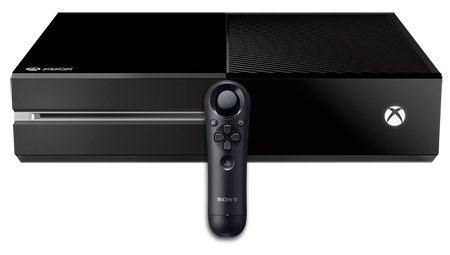

 Connect the CronusMAX PLUS to your Xbox One
If the LED on the CronusMAX PLUS does not change from AU to a number then the authorization controller is not authenticating. 99% of the time we find that this means the Micro-USB cable to the controller is faulty or not full data or simply not compatible, you should try another one. Another issue that sometimes comes up is that the controller USB port has a loose data pin. It will charge fine, but won't transmit data. Also make sure the controller is powered on of course - that's a rookie mistake. If it's stuck in AU after a console reset, then you need to unplug the Cronus as it is still reading the consoles security ID from the previous reboot. This is a problem with Xbox One as power is constantly provided to the USB ports, even after a soft-reset. We recommend you use our custom Power/Data Switch Cable. | ||||
 Connect your Official Xbox One Controller to the CronusMAX PLUS
| ||||
 Disconnect the Xbox One controller from the CronusMAX PLUS Once the display on the CronusMAX PLUS shows a number, disconnect your Xbox One controller from the CronusMAX PLUS.
| ||
 Connect your Bluetooth USB adapter to the CronusMAX PLUS
| ||
 Ready to Use
Bluetooth and Wi-Fi devices use the same radio frequencies to communicate, they often interfere with one another and are prone to interference from other devices operating on the same frequencies. If you are experiencing lag with your wireless controller, even though you have tried different Speed Up Settings in the Device Options panel, there is a good chance you have a WiFi Router that is causing interference. We have found that routers such as Apple's Airport Express have this problem and you should make sure that the router is not in close proximity to your CronusMAX/Bluetooth Adapter. You should also try changing the WiFi Router Channel to optimize your wireless signal. Click Here for more information on how to do that. We also recommend that you Click Here to check out an article that looks at the effects of such interference, what causes it and how to reduce it in a home or office environment. | ||
