Xbox 360 Wireless Controller

Connecting to a PlayStation TV

Connecting to a PlayStation TV
Set Output Protocol
Follow the instructions here to correctly connect your CronusMAX PLUS to a PC via the PC PROG port using the supplied Mini-USB Cable.

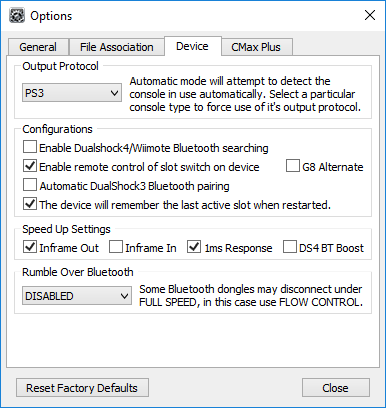

Load Cronus PRO and go to Tools > Options > Device
Set the Output Protocol to PS3.
These are also the recommended default Speed Up Settings for Wireless Xbox 360 Controllers. Rumble Over Bluetooth is disabled as it's not being used.
You can now close the Options window and disconnect your CronusMAX PLUS from your PC.
Connect the CronusMAX PLUS to your PlayStation TV
Connect the CronusMAX PLUS into one of your PlayStation TV USB ports via it's Output Port.
The CronusMAX PLUS LED Display will now show the spinning Standby animation.
Connect the Wireless Receiver to the CronusMAX PLUS
Connect your Xbox 360 Wireless Gaming Receiver into the Input Port of the CronusMAX PLUS.
Sync your Xbox 360 Wireless Controller with the Wireless Receiver
This step needs to be performed only the first time as the information is then permanently stored, you can skip straight to Step #7 in future.
• On the front of the controller, firmly press the large Guide button in the center. The controller will turn on, the Guide button will light up and green lights will flash around it.
• Press the connect button on the Wireless Gaming Receiver. The light will flash green. On the controller press the connect button, it is on the side, roughly in the middle, between the two shoulder triggers.
• The lights on the controller will flash and revolve to show it is searching for the Wireless Receiver. Wait until the lights stop flashing and remain on in one of the quarter sections around the Guide button.
Press the Guide button on your Xbox 360 Wireless Controller
If you have previously performed the above step, Simply press the Guide button on your Xbox 360 controller.
The LED on the controller should start blinking, meaning the controller is tying to connect with the CronusMAX PLUS/Wireless Receiver.
Ready to Use
After a couple of seconds the display on the CronusMAX LED will go from the spinning Standby Animation to 0 (or a number if slot recall is enabled and a script was previously loaded) - indicating that the controllers are authorized and you're ready to play. At this point you can use your controller through the CronusMAX PLUS and also load any scripts or GamePacks. It's that simple!
