Wired Controllers (Xbox One, PS4, Xbox 360 and PS3)

Connecting to a PlayStation TV



Connecting to a PlayStation TV

1
Set Output Protocol


Follow the instructions here to correctly connect your CronusMAX PLUS to a PC via the PC PROG port using the supplied Mini-USB Cable.

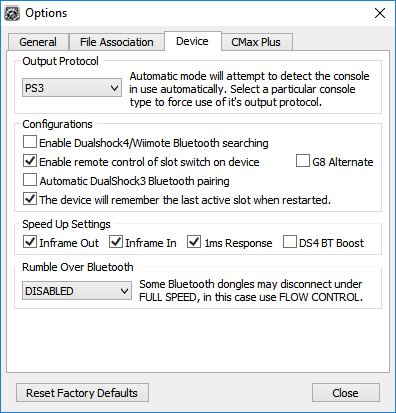

Load Cronus PRO and go to Tools > Options > Device


Set the Output Protocol to PS3.

These are also the recommended default Speed Up Settings for Wired Controllers.

You can now close the Options window and disconnect your CronusMAX PLUS from the PC. Rumble Over Bluetooth is disabled as it's not being used.

2
Connect the CronusMAX PLUS to your PlayStation TV


Connect the CronusMAX PLUS into one of your PlayStation TV USB ports via it's Output Port.



The CronusMAX PLUS LED Display will now show the spinning Standby animation.

3
Connect your Crossover Controller to the CronusMAX


Connect your Wired Controller of choice into the Input Port of the CronusMAX PLUS. If it's a wireless Xbox One or PS4 Controller use a full data Micro-USB Cable.

4
Ready to Use


After a couple of seconds the display on the CronusMAX LED will go from the spinning Standby Animation to 0 (or a number if slot recall is enabled and a script was previously loaded) - indicating that the controllers are authorized and you're ready to play. At this point you can use your controller through the CronusMAX PLUS and also load any scripts or GamePacks. It's that simple!

WARNING
If you are using an Xbox One or DualShock 4 Controller with a Micro USB cable and the LED on the CronusMAX PLUS changes back to AU then the Micro USB Cable is probably faulty or not compatible. Try another and make sure it is full data and not just a charging cable.
