Wired Controllers (PS4, Xbox 360 and PS3) - Connecting to an Xbox One

Connecting to an Xbox One


Connecting to an Xbox One

1
Set Output Protocol


Follow the instructions here to correctly connect your CronusMAX PLUS to a PC via the PC PROG port using the supplied Mini-USB Cable.

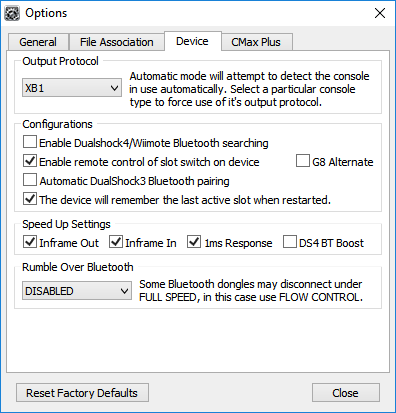

Load Cronus PRO and go to Tools > Options > Device


Set the Output Protocol to XB1.

These are also the recommended default Speed Up Settings for Wired Controllers. Rumble Over Bluetooth is disabled as it's not being used.

You can now close the Options window and disconnect your CronusMAX PLUS from your PC.

2
Connect the CronusMAX PLUS to your Xbox One


Connect the CronusMAX PLUS into one of your Xbox One USB ports via it's Output Port.

Note: As the Xbox One provides constant power to its USB ports, even when you do a soft-reset, we recommend using our custom Power/Data Switch Cable so you can easily reset the CronusMAX at anytime without getting stuck in AU mode.


The CronusMAX PLUS LED Display will now show the Authentication 'AU' Animation.

3
Remove any Xbox One Controller Batteries


Remove any batteries or charger pack from your Xbox One Controller (if it has them).


This is a very important step or the controllers will not authorize correctly.


4
Connect your Xbox One Controller to the CronusMAX PLUS


Connect your Xbox One Controller into the Input Port of the CronusMAX PLUS using a full data Micro-USB Cable.


After a couple of seconds the display on the CronusMAX LED will go from the Authentication 'AU' Animation to 0 (or a number if slot recall is enabled and a script was previously loaded). If the Display does not change from showing AU, try a different Micro-USB Cable between the CronusMAX PLUS and Xbox One Controller, and/or physically power cycle your Xbox One.

WARNING
If the LED on the CronusMAX PLUS does not change from AU to a number then the authorization controller is not authenticating. 99% of the time we find that this means the Micro-USB cable to the controller is faulty or not full data or simply not compatible, you should try another one. Another issue that sometimes comes up is that the controller USB port has a loose data pin. It will charge fine, but won't transmit data. Also make sure the controller is powered on of course - that's a rookie mistake. If it's stuck in AU after a console reset, then you need to unplug the Cronus as it is still reading the consoles security ID from the previous reboot. This is a problem with Xbox One as power is constantly provided to the USB ports, even after a soft-reset. We recommend you use our custom Power/Data Switch Cable.

5
Disconnect your Xbox One controller from the CronusMAX PLUS

   Once the display on the CronusMAX PLUS shows a number, disconnect your Xbox One controller from the CronusMAX PLUS.


The CronusMAX PLUS LED Display will now show the spinning Standby animation.

6
Connect your Crossover Controller to the CronusMAX PLUS


Connect your Wired Controller of choice into the Input Port of the CronusMAX PLUS. If it's a wireless PS4 Controller use a full data Micro-USB Cable.

7
Ready to Use


After a couple of seconds the display on the CronusMAX LED will go from the spinning Standby Animation to 0 (or a number if slot recall is enabled and a script was previously loaded) - indicating that the controllers are authorized and you're ready to play. At this point you can use your controller through the CronusMAX PLUS and also load any scripts or GamePacks. It's that simple! NOTE: If there is no response from your Crossover controller but the CronusMAX LED displays 0, then you should follow this Xbox One Troubleshooting Guide.

WARNING
If you are using an Xbox One or DualShock 4 Controller with a Micro USB cable and the LED on the CronusMAX PLUS changes back to AU then the Micro USB Cable is probably faulty or not compatible. Try another and make sure it is full data and not just a charging cable.

CONTROLLER DISCONNECTING?
If you find that your controller disconnects at random times there are several things to check that should solve the problem.

1. The USB cable could be losing its connection between the authorization (XB1) or gaming controller and the CronusMAX PLUS. This can be caused by a poor quality USB cable, the USB socket on the controller itself is loose, or any USB extension cable you may be using is poor quality or too long. Check all connections and replace any parts if necessary.

2. You powered on the console with the controller. Don't do that as the console will sync with the controller and the security ID will pass to the console and not the CronusMAX PLUS. Always power on the console with the consoles power button.

3. Go to Step 1 in this guide and make sure 'Inframe In' is disabled and also try disabling the '1ms Response' and 'Inframe Out' options too. This sometimes solves any disconnecting problems.
